Details - SR SUNTOUR Cycling











































































SF25-AXON34-Werx-Boost




100/110/120




Stanchion: 34
Boost





The AXON Werx has seen success at the highest levels of competition, winning Olympic Gold and taking the top step at many World Cup events under some of the most impressive athletes in the world.






  •
                                    specs

    Offset
    51 mm
    Travel
    100/110/120
    Crown/Steerer
    1.5"to1-1/8" tapered (CTS) Carbon STEERER
    Stanchion DIA. (Material)
    34 mm (Alloy)
    Bottom Case Material
    Magnesium
    Brake Mount (Max Rotor DIA.)
    Post 160 Direct (180mm)
    Axle (Option)
    15AHL-110 (Learn more)
    Suggested Category
    MTB_Trail_XC
    ABS Mount : optional
    No
    Spring
    AIR(EQ)
    Max. Suggested Tire Size (ETRTO)
    29"x2.4" (62-622)
    Damper
    RLRC-PCS (Learn more)
    Axle O.L.D
    ø15-110
    Lamp Mount
    No
    Fender Mount
    Short
    Hub Dynamo Cable Guide
    No


    •

  •
                            technologies

    •

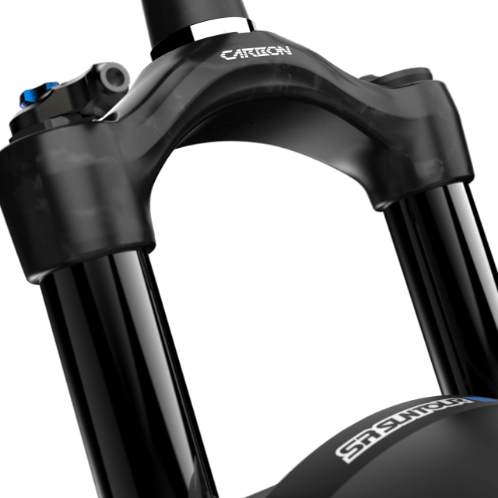

      LIGHTWEIGHT CROWN TECHNOLOGY


      Our lightweight forged hollow crown technology brings additional stiffness and keeps the weight down. It is 35 grams lighter than the solid crown. Our new one-piece hollow carbon upper saves again 120 grams towards the forged version.


      Learn more




    •

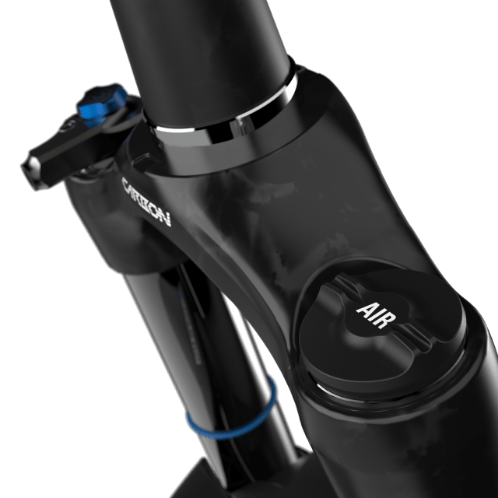

      EQ EQUALIZER™ SYSTEM


      The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.


      Learn more




    •





      PCS SYSTEM


      Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.


      Learn more




    •





      Q-LOC SYSTEM


      Q-LOC is our patented quick release system for thru axles fully deserving of the name "quick". Q-LOC 2 is the logical evolutionary step, guaranteeing 100% compatibility with all kinds of hub axle designs.


      Learn more




    •



  •
                    service





    •

  •
                            models

    AXON34-WERX-Boost EQ RLRC-PCS DS 15QLC2Ti-110 29"


    Glossary























shop now





You are now entering the online shop of SR SUNTOUR North America.










                                            I am aware that extra costs such as shipping, import duties can occur and that delivery times can be longer than mentioned in the terms and conditions of the SR SUNTOUR USA Webshop.




                                    Enter the shop

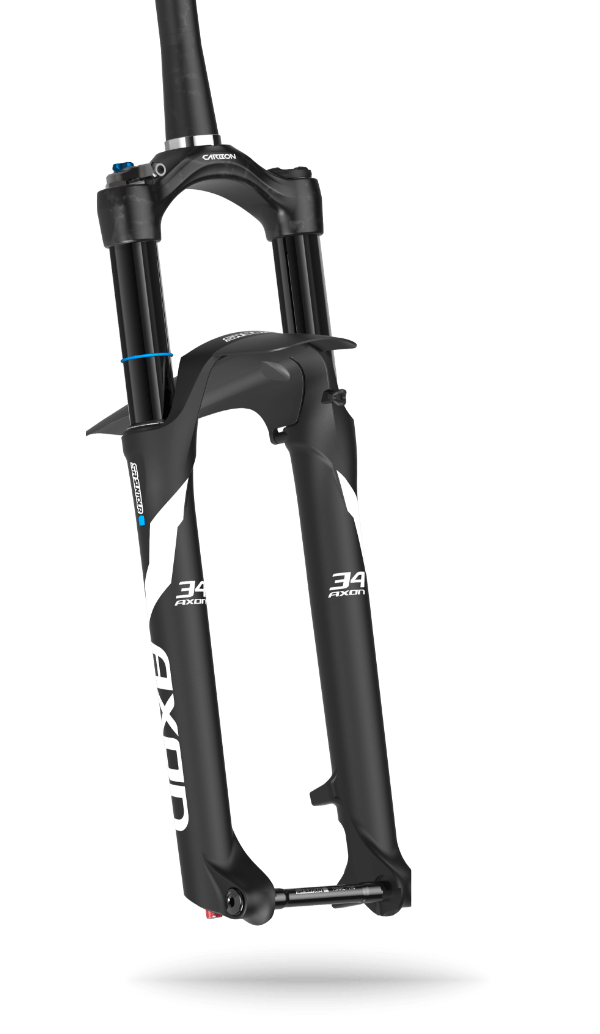

AXON34 WERX




MODERN XC





                        Whether you’re leading an XC race or chasing a new PR, the AXON34 WERX is the fork that always delivers. Proven at the sport’s highest levels, including Olympic Gold Medals and multiple World Cup victories, the AXON WERX has earned its place as the premier choice for athletes pushing the limits of cross country racing. Featuring a one-piece hollow carbon upper and 34 mm stanchions, it offers exceptional torsional stiffness without compromising weight, making it ideal for the most demanding race courses. At the heart of the AXON34 WERX is the Air EQ System, which automatically balances positive and negative air chambers for perfectly tuned support, tailored to each rider’s weight and riding style. Combined with the PCS cartridge, the result is buttery smooth small-bump compliance with unwavering midstroke support. With heart rates high, mistakes can be the difference between a podium and a DNF, the AXON34 WERX is in front of you taking the hits so you can keep going.















Key features










Key features








One-piece hollow carbon upper
Air spring
34 mm A7000 triple butted series

















15x110 boost standard
15AHL-110 axle
PCS™ Piston Compensator System

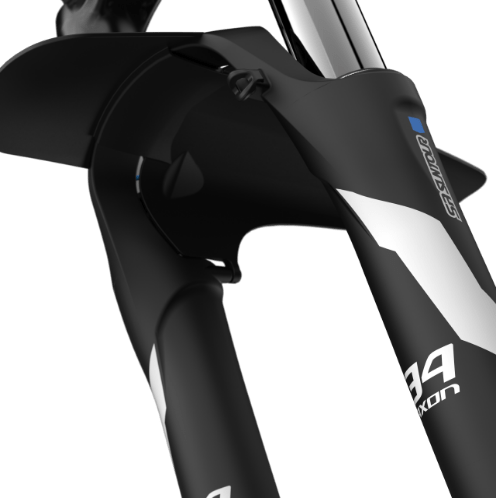

Detachable integrated short fender
Equalizer (EQ) System
RLRC-PCS cartridge





















































































































Technology




  •





    LIGHTWEIGHT CROWN TECHNOLOGY


    Our lightweight forged hollow crown technology brings additional stiffness and keeps the weight down. It is 35 grams lighter than the solid crown. Our new one-piece hollow carbon upper saves again 120 grams towards the forged version.


    Learn more




  •





    EQ EQUALIZER™ SYSTEM


    The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.


    Learn more




  •





    PCS SYSTEM


    Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.


    Learn more




  •





    Q-LOC SYSTEM


    Q-LOC is our patented quick release system for thru axles fully deserving of the name "quick". Q-LOC 2 is the logical evolutionary step, guaranteeing 100% compatibility with all kinds of hub axle designs.


    Learn more




    •
