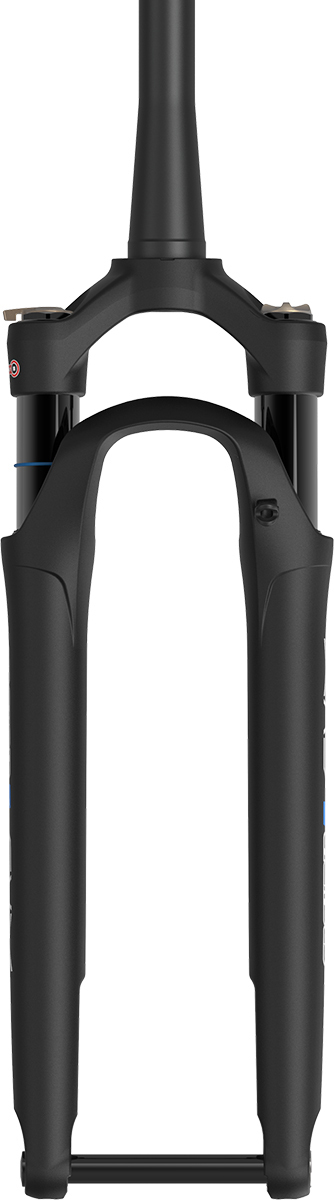

GVX 700C
-
specs
Offset45mm, 46mm, 47mm (Corresponding by travel)Steerer tube diameter1.5"to1-1/8"Travel40/50/60Left SideAir springCrown/SteererA6000, ForgedStanchion DIA. (Material)32mmBottom Case MaterialMagnesiumBrake Mount (Max Rotor DIA.)Flat Mount brakeSteerer tube1.5"to1-1/8" tapered(CTS), AlloyNoteRated for Class 1 / E25 e-Bikes to match the growing e-Gravel trendsWeightstarting from 1725gStanchion tube finishA7000, anodized black.Axle (Option)ø15-100 15AH2 (Learn more)Suggested CategoryGravel
- service
You are now entering the online shop of SR SUNTOUR North America.

Explore the road less traveled
Performance is rooted in durability mand reliability. Whether you’re exploring endless gravel roads, racing on the ever-more technical Cyclocross courses, lining up for a 100 mile gravel race or building a sleek new e-Gravel bike, the GVX suspension gravel fork from SR SUNTOUR is for the gravel experience. Suspending you on 32 mm stanchions with travel and damping adjustments create traction, comfort and versatility that puts the GVX in a class of its own. The versatility designed into the GVX is wide reaching, accommodating a variety of tire sizes, riding styles, and conditions. At the end of an all-day adventure or during the last few miles of that gravel century your body will be thanking you for choosing the GVX. For 2023 available as a base level version GVX32-E and - new - as dedicated performance -S version coming with all the bells and whistles aka EQ air negative spring, PCS sealed damping cartridge, 7000 series aluminum stanchions and hollow crown.
Key features
- 32mm stanchions from A7000
series alloy, anodized black - Hollow forged crown (GVX32-S),
forged crown (GVX32-E) - Crown mounted hydraulic
lockout and rebound adjust

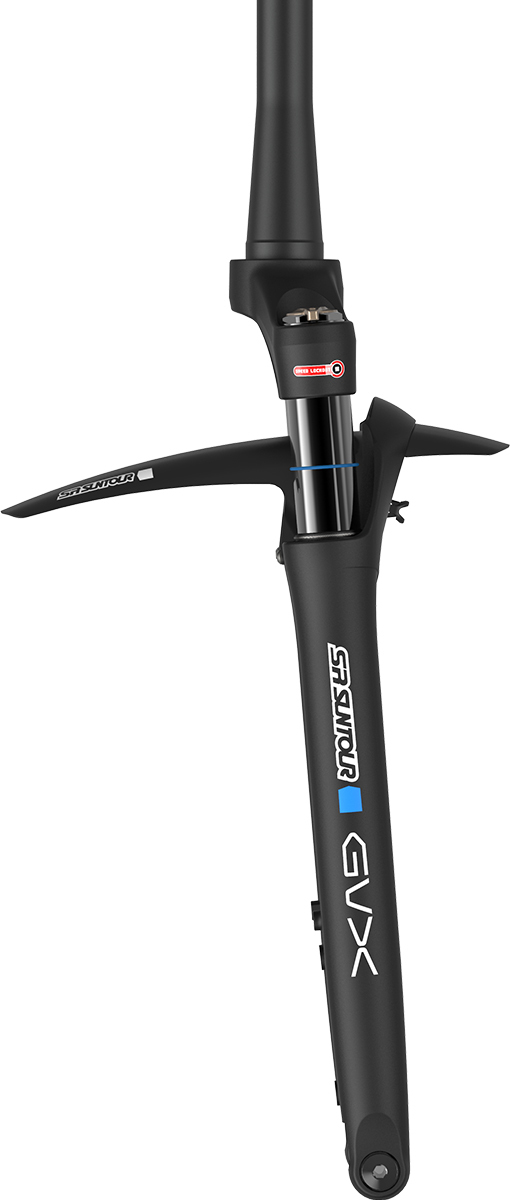

- Mini fender included
- Rated for Class 1 / E25 e-Bikes
to match the growing e-Gravel trends
- Available in 700C
- Travel: 40mm, 50mm, 60mm
- Vertically aligned and tapered dropouts
- 100x15mm or 100x12mm dropouts
with a lightweight, hollow-caped
and tool-type axle
