Details - SR SUNTOUR Cycling









SF25-AION36X-Boost

120/130/140/150/160
Stanchion: 36
Boost
Our AION36X is the choice for your all-mountain adventures, whether it be long backcountry rides or hitting up your local trails.
  • specs
    Offset
    44 mm
    Travel
    120/130/140/150/160
    Crown/Steerer
    C61/1.5"to1-1/8" tapered(CTS), Alloy
    Stanchion DIA. (Material)
    36 mm (Alloy)
    Bottom Case Material
    Magnesium
    Brake Mount (Max Rotor DIA.)
    Post 180 Direct (220mm)
    Axle (Option)
    15AH2-110 (15LH-110) (Learn more)
    Suggested Category
    eMTB All mountain
    ABS Mount
    Yes
    Spring
    AIR(EQ)
    Max. Suggested Tire Size (ETRTO)
    29"x2.6" (65-622)
    Damper
    3CR-PCS/LORC-PCS/2CR-PCS/RC-PCS (Learn more)
    Crown/Steerer (Option-1)
    C74/1.8"to1-1/8" tapered(CTS), Alloy
    Axle O.L.D
    ø15-110
    Lamp Mount
    No
    Fender Mount
    Short & Long
  • technologies
    • EQ EQUALIZER™ SYSTEM

      The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.

      Learn more

    • PCS SYSTEM

      Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.

      Learn more

  • service
  • models
    AION36X-BOOST EQ ABS 2CR-PCS DS 15AH2-110 29"
    AION36X-BOOST EQ 2CRPCS DS 15AH2-110 29"
    AION36X-BOOST EQ ABS RC-PCS DS 15AH2-110 29"
    AION36X-BOOST EQ RCPCS DS 15AH2-110 29"
    AION36X-BOOST EQ ABS 3CR-PCS DS 15AH2-110 29"
    AION36X-BOOST EQ 3CRPCS DS 15AH2-110 29"
    AION36X-BOOST EQ ABS LORC-PCS DS 15AH2-110 29"
    AION36X-BOOST EQ LORCPCS DS 15AH2-110 29"
shop now

You are now entering the online shop of SR SUNTOUR North America.

I am aware that extra costs such as shipping, import duties can occur and that delivery times can be longer than mentioned in the terms and conditions of the SR SUNTOUR USA Webshop.
Enter the shop
NULL

A STEP ABOVE

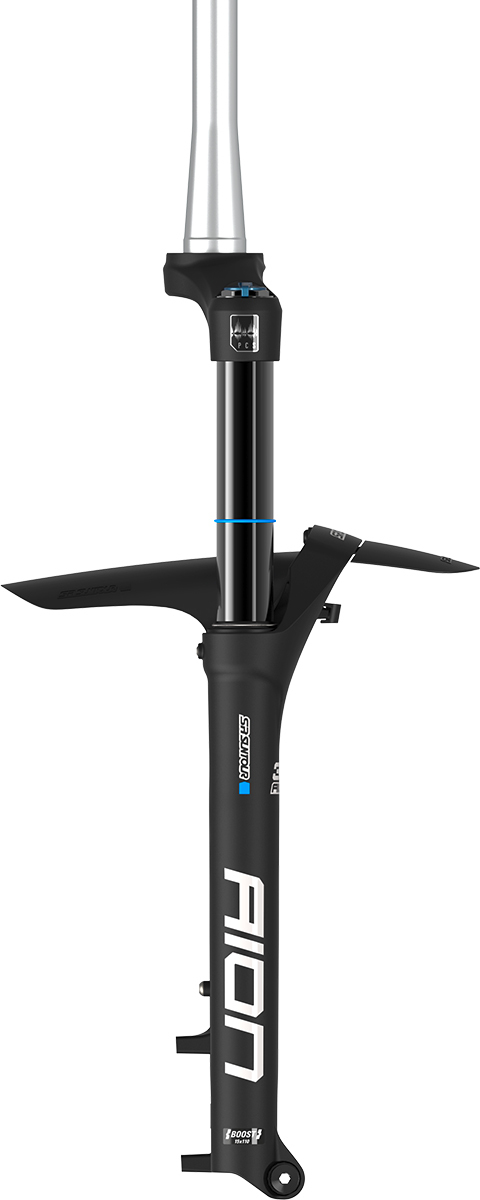

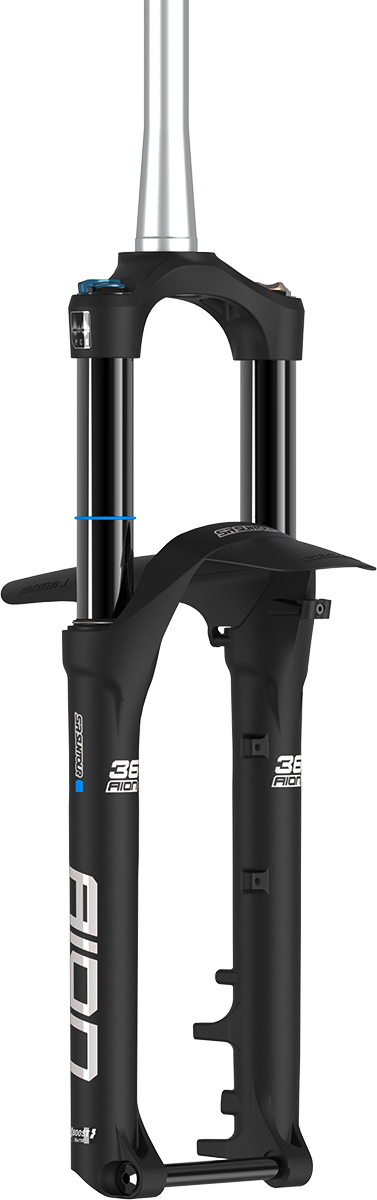

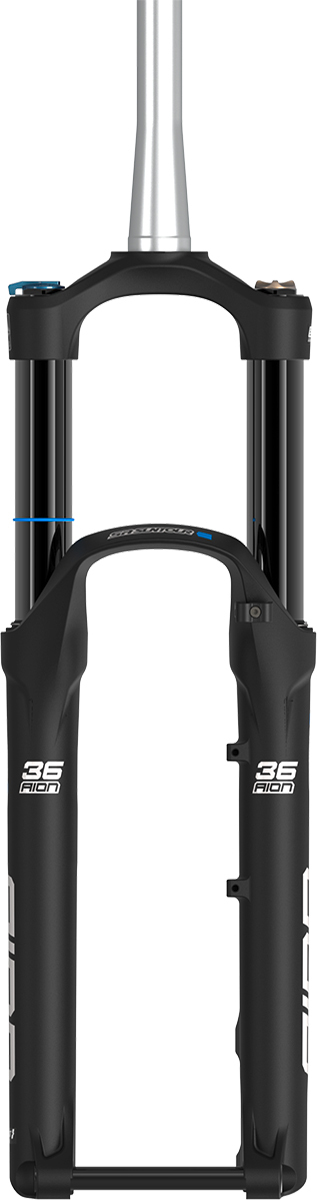

Our AION36X is the choice for your all-mountain adventures, whether it be long backcountry rides or hitting up your local trails. With up to 160mm of travel and stiff 36mm stanchions this reinforced, ebike ready fork is down for anything you put in front of you but at a price that won’t ruin your bike budget. With our EQ air negative spring system and a sealed PCS damper you’ll be trail ready in no-time with amazing small bump compliance and loads of support to soak up the extra rough stuff. We also didn’t forget the details with an integrated fender, mounting points for urban fender for daily comfort and clearance for big tires and brake rotors.

Keyfeatures







  • 15AH2-110, Option 15LH-110
  • Available in 29" and 27.5" Boost
  • 15x110 boost standard
  •





  • 36 mm stanchions from A7000
    series alloy, anodized black
  • Travel: 120 mm, 130 mm, 140 mm,
    150 mm, 160 mm
  • Air spring
  • PCS - Piston Compensator System
  •

  • Detachable integrated short fender
  • ABS mount option
  • Next level of performance with the
    all new EQUALIZER™ (EQ)
    air negative spring system
  •

Technology

  • EQ EQUALIZER™ SYSTEM

    The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.

    Learn more

  • PCS SYSTEM

    Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.

    Learn more
