Details - SR SUNTOUR Cycling










































































SF25-AION38X-Boost




160/170/180




Stanchion: 38
Boost





The all-new SR SUNTOUR AION38X is the ultimate all-mountain and hard-charging suspension fork at a price that will leave money left for a few extra shuttle laps or an extra battery.






  •
                                    仕様

    Travel
    160/170/180
    Crown/Steerer
    C61/1.5"to1-1/8" tapered(CTS), Alloy
    Stanchion DIA. (Material)
    38 mm (Alloy)
    Bottom Case Material
    Magnesium
    Brake Mount (Max Rotor DIA.)
    Post 203 Direct (220mm)
    Axle (Option)
    15AH2-110 (15LH-110) (Learn more)
    Suggested Category
    eMTB AM
    ABS Mount : optional
    Yes
    Spring
    AIR(EQ)
    Max. Suggested Tire Size (ETRTO)
    29"x2.6" (65-622)
    Damper
    3CR-PCS / LORC-PCS / 2CR-PCS / RC-PCS (Learn more)
    Crown/Steerer (Option-1)
    C74/1.8"to1-1/8" tapered(CTS), Alloy
    Axle O.L.D
    ø15-110
    Lamp Mount
    No
    Fender Mount
    Short & Long
    Hub Dynamo Cable Guide
    No


    •

  •
                            テクノロジー

    •





      EQ EQUALIZER™ SYSTEM


      The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.


      さらに詳しく




    •





      PCS SYSTEM


      Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.


      さらに詳しく




    •



  •
                    サービス





















今すぐ購入





現在、SR SUNTOUR NorthAmericaのオンラインストアにアクセスしています。










                                            SR SUNTOUR USAオンラインストアの利用規約に記載されているよりも、送料、輸入税、配達時間などの追加料金が発生する可能性があることを認識しています。




                                    お店に入る

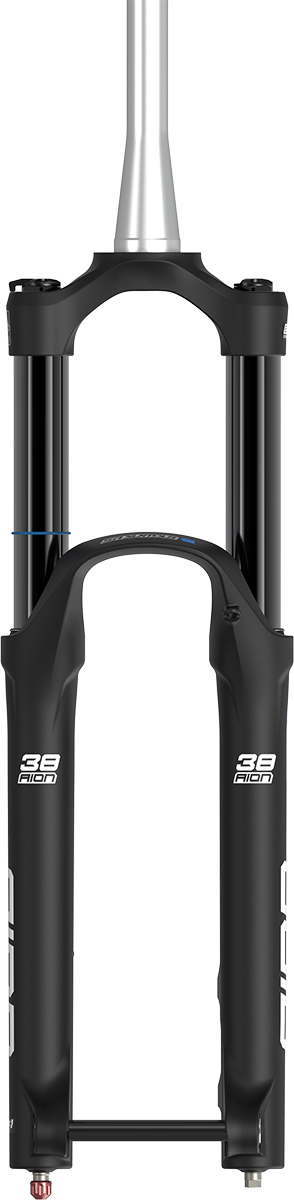

AION38X




A STEP ABOVE




The all-new SR SUNTOUR AION38X is the ultimate all-mountain and hard-charging suspension fork at a price that will leave money left for a few extra shuttle laps or an extra battery. With robust 38mm stanchions and up to 180mm of travel this ebike ready fork goes even harder. Featuring our air EQ system and a sealed PCS damper, it makes for the easiest set-up and adjustments for the hardest and steepest trails. We also didn’t skimp on the details as we included integrated fenders, space for big tires and brake rotors, and fender mounting points all in a value-oriented package.







COLOR OPTION

















































Key features










Key features








15AH2-110, Option 15LH-110
Available in 29" and 27.5" Boost
15x110 boost standard

















Extra strong
38 mm stanchions from A7000 series alloy, anodized black
PCSTM Piston Compensator System

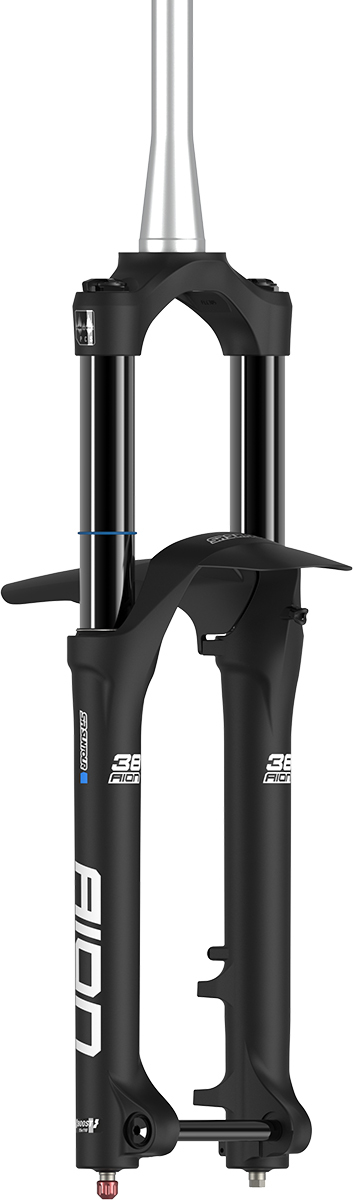

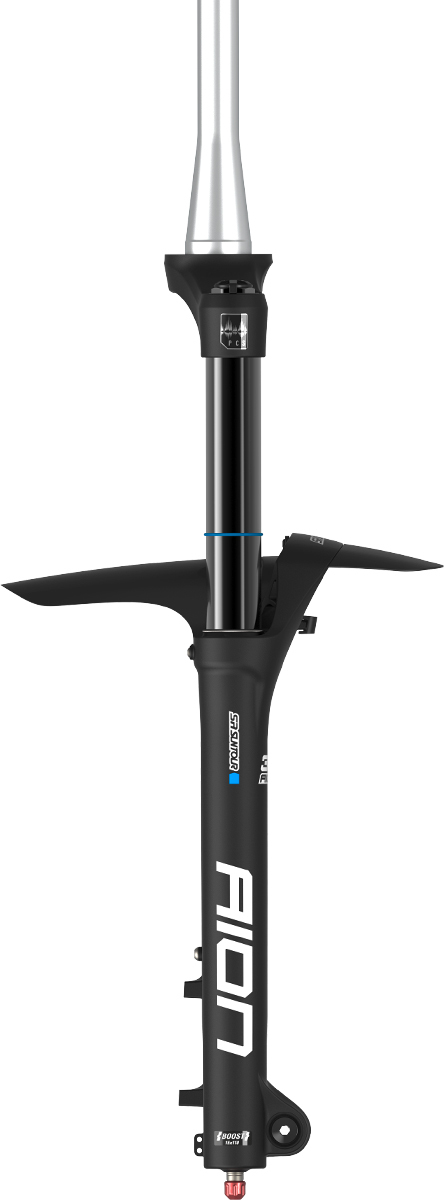

Detachable integrated short fender
Travel: 160 mm, 170 mm, 180 mm
ABS mount option
























  •











    •


















Technology




  •





    EQ EQUALIZER™ SYSTEM


    The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.


    さらに詳しく




  •





    PCS SYSTEM


    Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.


    さらに詳しく




    •
