Details - SR SUNTOUR Cycling

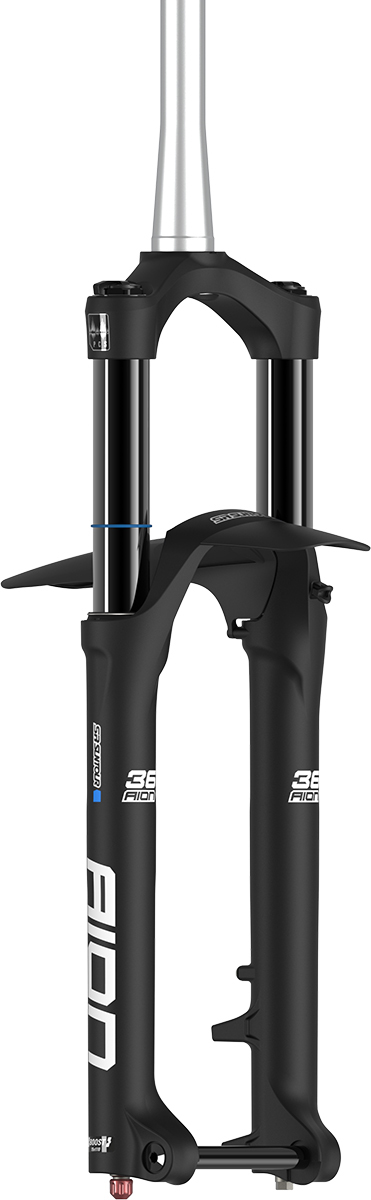

SF25-AION36-Boost




120/130/140/150/160




Stanchion: 36
Boost





The redesigned AION is the choice for your all-mountain adventures, whether it be long back country rides, an enduro race or hitting up your local bike park.






  •
                                    Spécifications

    Offset
    44 mm
    Travel
    120/130/140/150/160
    Crown/Steerer
    C61/1.5"to1-1/8" tapered (CTS) Alloy STEERER
    Stanchion DIA. (Material)
    36 mm (Alloy)
    Bottom Case Material
    Magnesium
    Brake Mount (Max Rotor DIA.)
    Post 180 Direct (220mm)
    Axle (Option)
    15AH4-110 (Learn more)
    Suggested Category
    MTB_AM
    ABS Mount : optional
    No
    Spring
    AIR(EQ)
    Max. Suggested Tire Size (ETRTO)
    27.5"x2.6" (65-584)
    Damper
    3CR-PCS/2CR-PCS/RC-PCS (Learn more)
    Crown/Steerer (Option-1)
    C74/1.5"to1-1/8" tapered (CTS) Alloy STEERER
    Axle O.L.D
    ø15-110
    Lamp Mount
    No
    Fender Mount
    Short & Long
    Hub Dynamo Cable Guide
    No


    •

  •
                            Technologies

    •





      EQ EQUALIZER™ SYSTEM


      The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.


      En savoir plus




    •





      PCS SYSTEM


      Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.


      En savoir plus




    •



  •
                    Entretien





    •

  •
                            Des modèles

    AION36-BOOST EQ R-3CR-PCS DS 15LH-110 27.5"
     AION36-BOOST EQ 3CR-PCS DS 15LH-110 27.5"
     AION36-BOOST EQ RLRC-PCS DS 15LH-110 27.5"
     AION36-BOOST EQ LORC-PCS DS 15LH-110 27.5"
     AION36-BOOST EQ R-2CR-PCS DS 15LH-110 27.5"
     AION36-BOOST EQ 2CR-PCS DS 15LH-110 27.5"
     AION36-BOOST EQ RC-PCS DS 15LH- 110 27.5"
     AION36-BOOST EQ ABS R-3CR-PCS DS 15LH-110 27.5"
     AION36-BOOST EQ ABS 3CR-PCS DS 15LH-110 27.5“
     AION36-BOOST EQ ABS RLRC-PCS DS 15LH-110 27.5“
    AION36-BOOST EQ ABS LORC-PCS DS 15LH-110 27.5“
     AION36-BOOST EQ ABS R-2CR-PCS DS 15LH-110 27.5“
     AION36-BOOST EQ ABS 2CR-PCS DS 15LH-110 27.5“
     AION36-BOOST EQ ABS RC-PCS DS 15LH-110 27.5"
