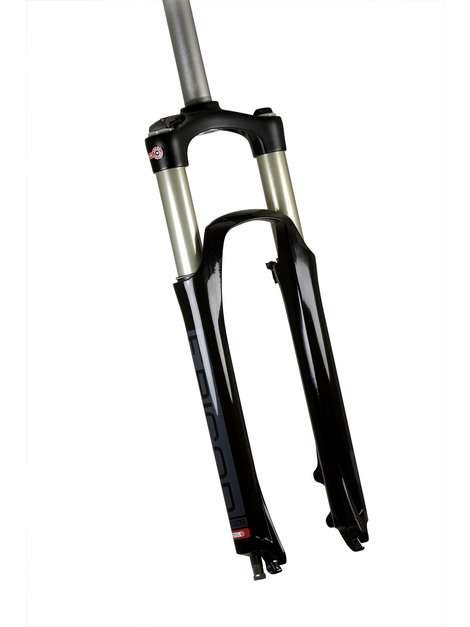

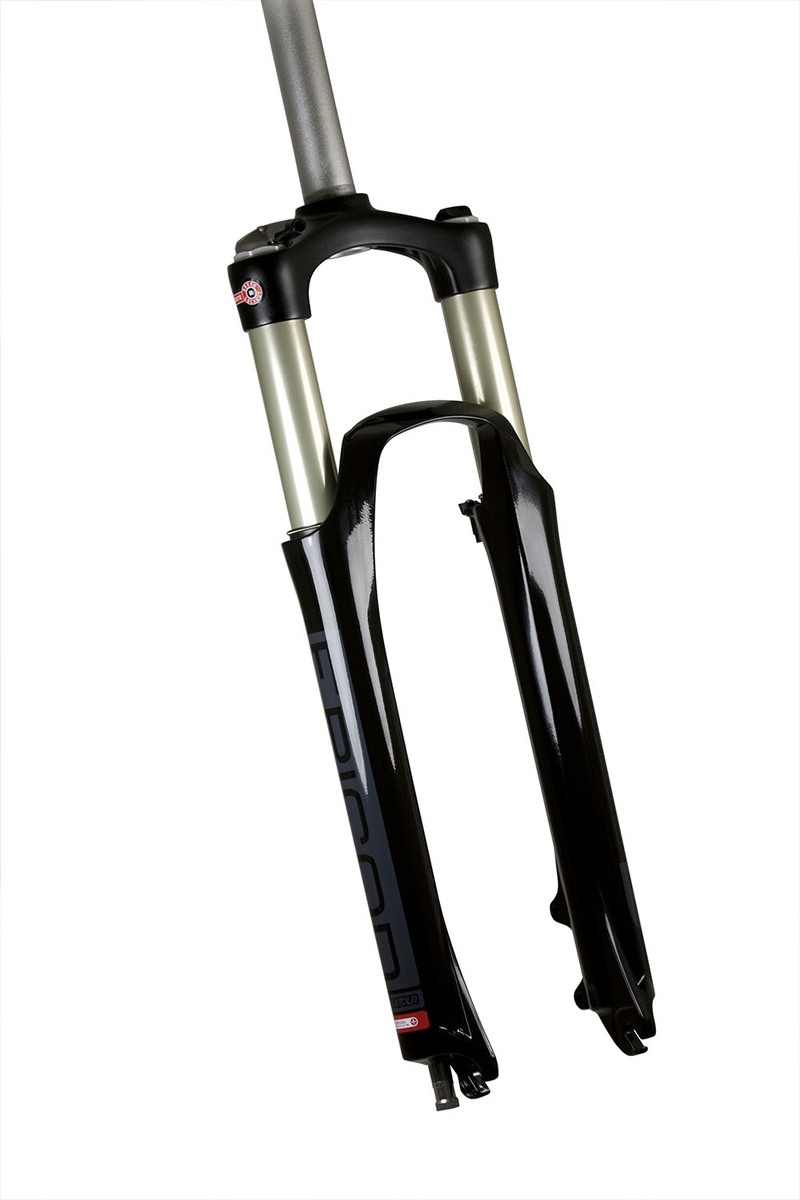

SF9-EPIXON XC TAD 15




140 - 100




Max. Disc: 185 mm





New magnesium monocoque, Air spring, Hydraulic damping: Speed remote lock






  •
                                    specs

    Former Model
    Epicon
    Intended Use
    AM
    Travel
    140 - 100
    Right Side
    Hydraulic rebound damping with external adjuster on bottom
    Left Side
    Dual chamber air remote Travel Adjust cartridge
    Crown/Steerer
    Alloy
    Stanchion DIA. (Material)
    32mm
    Upper
    Alloy
    Pitch
    130mm
    Design
    15mm through axle / Disc only design
    Bottom Case Material
    New magnesium monocoque for 15mmQLOC system design
    Brake Mount (Max Rotor DIA.)
    Disc (Post mount type: for 180mm rotor)
    Steerer tube
    Alloy
    Note
    Lever for Remote travel adjust included
    Weight
    1750g
    Stanchion tube finish
    Gold anodized


    •



  •
