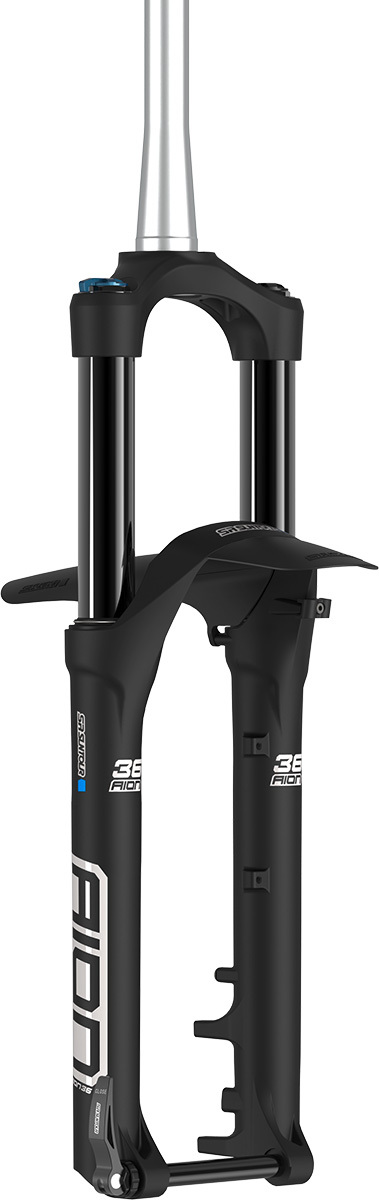

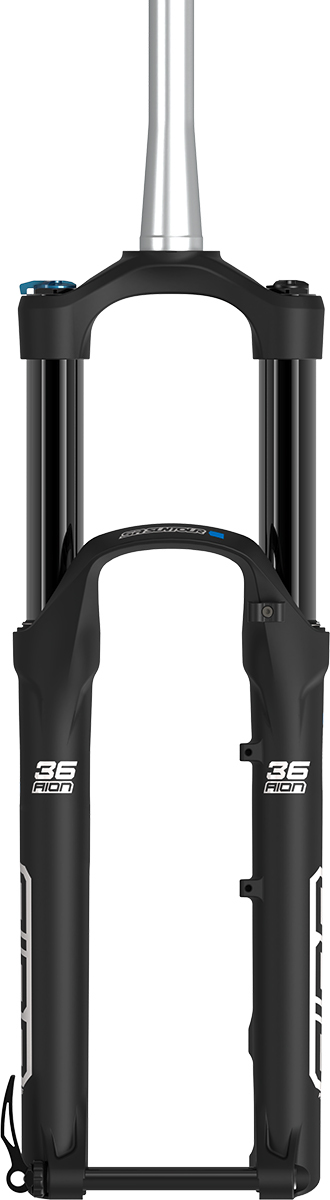

AION36 Boost EQ

120/130/140/150/160

Boost

The redesigned AION is the choice for your all-mountain adventures, whether it be long back country rides, an enduro race or hitting up your local bike park.

规格
Offset
44mm available
Steerer tube diameter
1.5"to1-1/8"
Travel
120/130/140/150/160
Right Side
R-3CRPCS, 3CRPCS, RLRC-PCS, LORC-PCS, R-2CR-PCS, 2CR-PCS, RC-PCS
Left Side
Air spring
Crown/Steerer
A6000 series, Forged
Stanchion DIA. (Material)
36mm
Pitch
145mm
Bottom Case Material
Magnesium
Brake Mount (Max Rotor DIA.)
Postmount 180mm Direct
Steerer tube
1.5"to1-1/8" tapered (CTS) Alloy
Stanchion tube finish
A6000, Hard anodized Black
Axle (Option)
ø15-110 15LH-110 (Learn more)
Suggested Category
Enduro, Trail
Axle to Crown
580 (160travel), 570 (150 travel), 560 (140 travel)
ABS Mount : optional
Yes
技术
- EQ均衡器™系统：

  The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.

  了解更多
- PCS系统

  Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.

  了解更多

服务
- General Fork Manuals
- Fork Glossary
楷模
AION36-BOOST EQ ABS R-3CR-PCS DS 15LH-110 29"
AION36-BOOST EQ ABS 3CR-PCS DS 15LH-110 29"
AION36-BOOST EQ ABS RLRC-PCS DS 15LH-110 29"
AION36-BOOST EQ ABS LORC-PCS DS 15LH-110 29"
AION36-BOOST EQ ABS R-2CR-PCS DS 15LH-110 29"
AION36-BOOST EQ ABS 2CR-PCS DS 15LH-110 29"
AION36-BOOST EQ ABS RC-PCS DS 15LH-110 29"
AION36-BOOST EQ R-3CR-PCS DS 15LH-110 29"
AION36-BOOST EQ 3CR-PCS DS 15LH-110 29"
AION36-BOOST EQ RLRC-PCS DS 15LH-110 29"
AION36-BOOST EQ LORC-PCS DS 15LH-110 29"
AION36-BOOST EQ R-2CR-PCS DS 15LH-110 29"
AION36-BOOST EQ 2CR-PCS DS 15LH-110 29"
AION36-BOOST EQ RC-PCS DS 15LH-110 29"
