Details - SR SUNTOUR Cycling

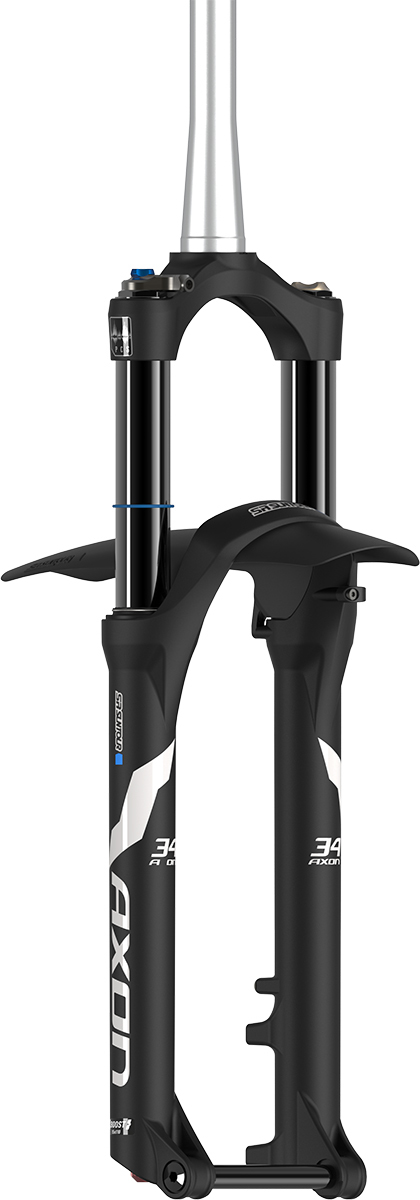

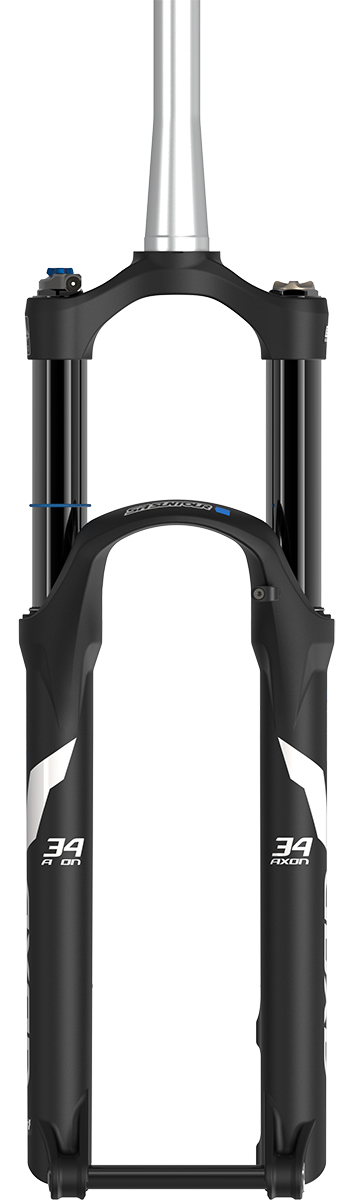

SF25-AXON34-Boost




100/120/130/140




Stanchion: 34
Boost





Modern XC racing is as much about strong legs as it is about owning the trail. On the very top level, the Olympic games or the World Cup, there is no room for weaknesses, no interest in excuses.






  •
                                    Spécifications

    Offset
    44 mm
    Travel
    100/120/130/140
    Crown/Steerer
    C53/1.5"to1-1/8" tapered(CTS), Alloy
    Stanchion DIA. (Material)
    34 mm (Alloy)
    Bottom Case Material
    Magnesium
    Brake Mount (Max Rotor DIA.)
    Post 180 Direct (203mm)
    Axle (Option)
    15AH2-110 (15LH-110) (Learn more)
    Suggested Category
    MTB Trail XC
    ABS Mount : optional
    No
    Spring
    AIR(EQ)
    Max. Suggested Tire Size (ETRTO)
    29"x2.4" (62-622)
    Damper
    RLRC-PCS/LORC-PCS (Learn more)
    Axle O.L.D
    ø15-110
    Lamp Mount
    No
    Fender Mount
    Short
    Hub Dynamo Cable Guide
    No


    •

  •
                            Technologies

    •





      EQ EQUALIZER™ SYSTEM


      The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.


      En savoir plus




    •





      PCS SYSTEM


      Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.


      En savoir plus




    •





      Q-LOC SYSTEM


      Q-LOC is our patented quick release system for thru axles fully deserving of the name "quick". Q-LOC 2 is the logical evolutionary step, guaranteeing 100% compatibility with all kinds of hub axle designs.


      En savoir plus




    •



  •
                    Entretien





    •

  •
                            Des modèles

    AXON34-BOOST EQ RLRC-PCS DS 15AH2- 110 29"
     AXON34-BOOST EQ LORC-PCS DS 15AH2- 110 29"
