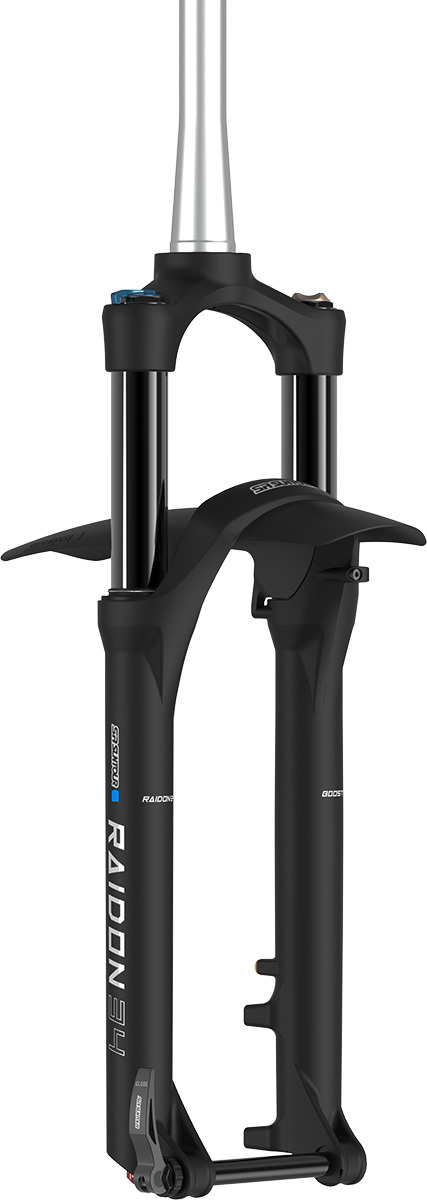

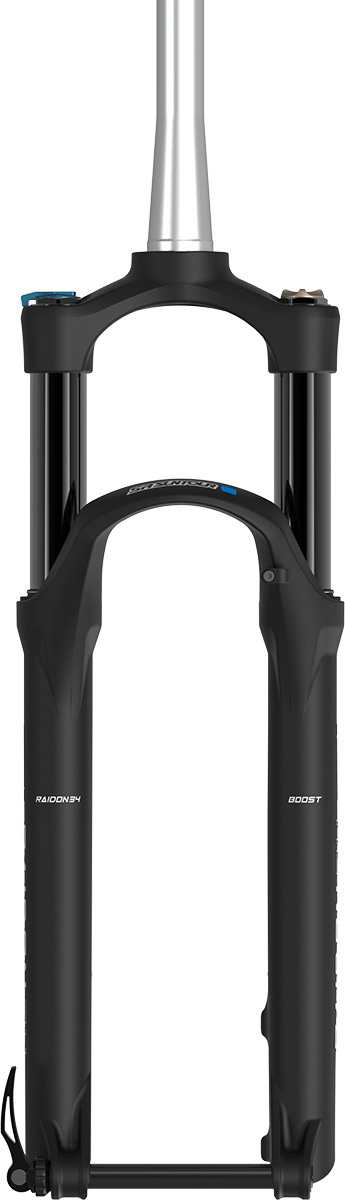

Raidon34 Boost

120/100

Boost

• specs
  Offset

  51mm available

  Steerer tube diameter

  1.5"to1-1/8"

  Travel

  120/100

  Right Side

  R-2CR, 2CR

  Left Side

  Air spring

  Crown/Steerer

  AC4C

  Stanchion DIA. (Material)

  34mm

  Pitch

  145mm

  Bottom Case Material

  Magnesium

  Brake Mount (Max Rotor DIA.)

  Postmount 180mm Direct

  Steerer tube

  1.5"to1-1/8" tapered (CTS) Alloy

  Stanchion tube finish

  A6000, Hard anodized Black

  Axle (Option)

  ø15-110 15LH110 (Learn more)

  Suggested Category

  Cross Country

  Axle to Crown

  546.5 (120 travel) 526.5 (100 travel)
• technologies
  •

    EQ EQUALIZER™ SYSTEM

    The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.

    Learn more

• service
  • General Fork Manuals
  • Fork Glossary

  ---

  Service Guide
• models
  RAIDON34-BOOST EQ R-2CR DS 15LH-110 29"
  RAIDON34-BOOST EQ 2CR DS 15LH-110 29"
