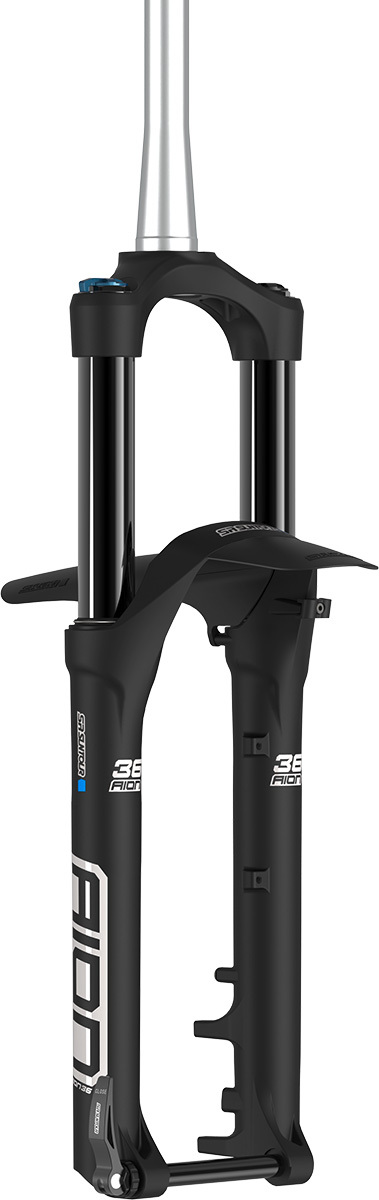

AION36 Boost EQ

120/130/140/150/160

Boost

• specs
  Offset

  44mm available

  Steerer tube diameter

  1.5"to1-1/8"

  Travel

  120/130/140/150/160

  Right Side

  R-3CRPCS, 3CRPCS, RLRC-PCS, LORC-PCS, R-2CR-PCS, 2CR-PCS, RC-PCS

  Left Side

  Air spring

  Crown/Steerer

  A6000 series, Forged

  Stanchion DIA. (Material)

  36mm

  Pitch

  145mm

  Bottom Case Material

  Magnesium

  Brake Mount (Max Rotor DIA.)

  Postmount 180mm Direct

  Steerer tube

  1.5"to1-1/8" tapered (CTS) Alloy

  Stanchion tube finish

  A6000, Hard anodized Black

  Axle (Option)

  ø15-110 15LH-110 (Learn more)

  Suggested Category

  Enduro, Trail

  Axle to Crown

  580 (160travel), 570 (150 travel), 560 (140 travel)

  ABS Mount : optional

  Yes
• technologies
  •

    EQ EQUALIZER™ SYSTEM

    The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.

    Learn more

  •

    PCS SYSTEM

    Floating on a magic carpet is the feeling we’re aiming for. Reducing the impact from the ground into your body is the first step. With the PCS as the foundation and completely new designed shim based high-speed compression and rebound circuits, our new R2C2 cartridge is progress in the right direction with our testing data providing proof. Simple, reliable, durable and easy service performance.

    Learn more

• service
  • General Fork Manuals
  • Fork Glossary

  ---

  Service Guide
• models
  AION36-BOOST EQ ABS R-3CR-PCS DS 15LH-110 29"
  AION36-BOOST EQ ABS 3CR-PCS DS 15LH-110 29"
  AION36-BOOST EQ ABS RLRC-PCS DS 15LH-110 29"
  AION36-BOOST EQ ABS LORC-PCS DS 15LH-110 29"
  AION36-BOOST EQ ABS R-2CR-PCS DS 15LH-110 29"
  AION36-BOOST EQ ABS 2CR-PCS DS 15LH-110 29"
  AION36-BOOST EQ ABS RC-PCS DS 15LH-110 29"
  AION36-BOOST EQ R-3CR-PCS DS 15LH-110 29"
  AION36-BOOST EQ 3CR-PCS DS 15LH-110 29"
  AION36-BOOST EQ RLRC-PCS DS 15LH-110 29"
  AION36-BOOST EQ LORC-PCS DS 15LH-110 29"
  AION36-BOOST EQ R-2CR-PCS DS 15LH-110 29"
  AION36-BOOST EQ 2CR-PCS DS 15LH-110 29"
  AION36-BOOST EQ RC-PCS DS 15LH-110 29"
