お近くの自転車販売店にて、フォークの総合チェックをご依頼ください。
SR SUNTOURは、目安として25時間使用毎に、当社純正のConpannaグリース又はテフロンベースの潤滑剤を推奨いたします。
すべてのSR SUNTLOURフォークは、独自のグリースを使用して当社工場で生産されています。 このグリースは時間とともに分解し、油のような外観を呈することがあります。その際は、乾いた布で特にスタンチオンチューブから拭き取ってください。メンテナンスの目安として、およそ50時間或いはそれ以前に新しいグリースアップされることをお勧めします。

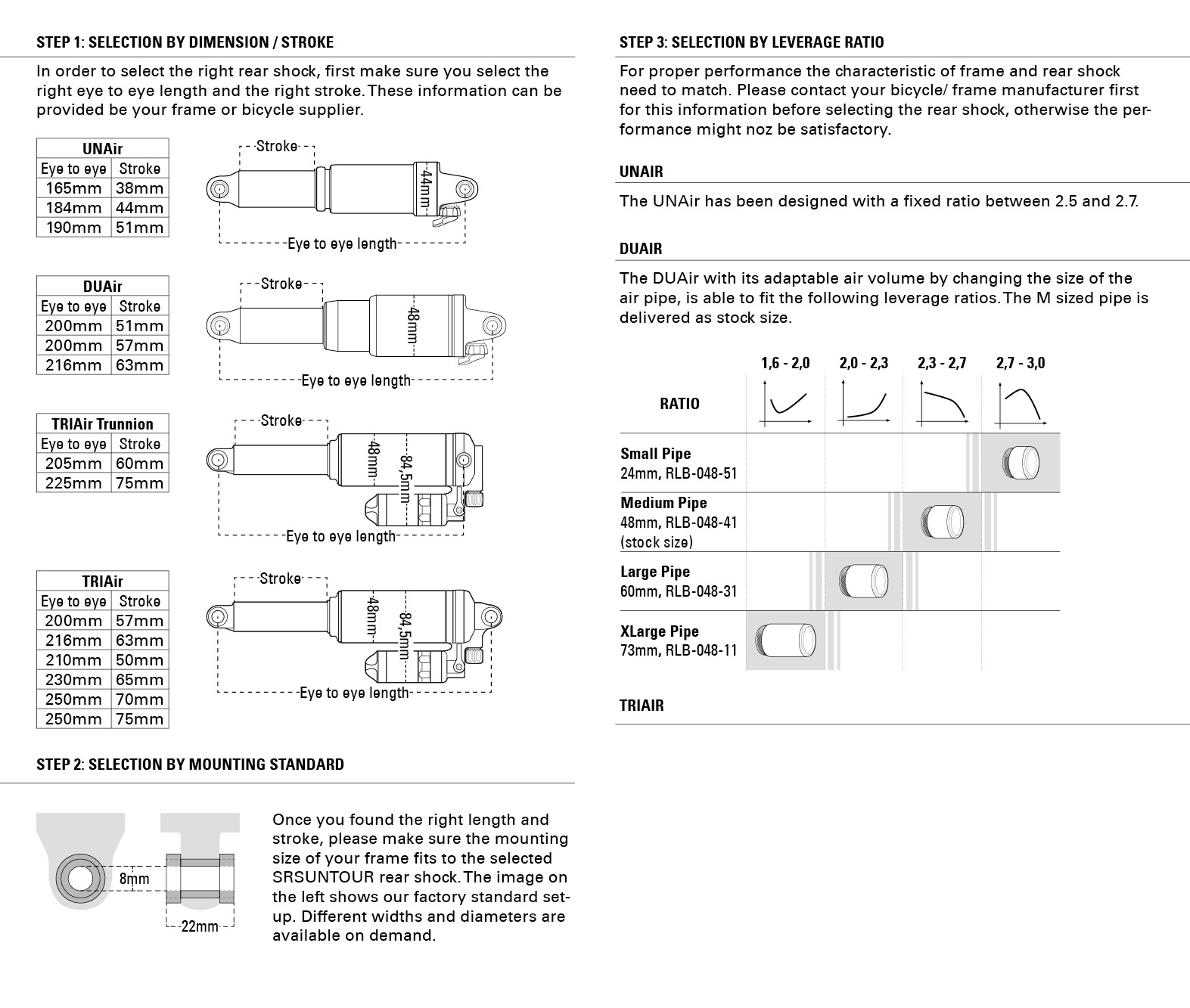

この様な状況は正常で、空気は実際にはポンプから流れており、リヤショックやフォークからではありません。 ポンプを再度取り付けるとき、ポンプに対して約10〜15 psiの圧力がかかる場合があり、その際、ポンプのゲージにエアスプリングよりも低い圧力を表示させることがあります。再度取扱説明書を参照いただき、適切な空気圧とSAGセッティングを行ってください。
SAGとは、自転車に乗ったときの最初のフォーク移動量です。この調整により、あなたのフォークまたはリヤショックの最適なパフォーマンスを可能にします。
一般的に言って、120mm以下のトラベルのフォークは15〜20%のSAG調整を推奨いたします。一方120mmを超えるトラベルのサスペンションフォークは、25〜30%のSAG設定を推奨いたします。
HESC means "Human Electro Synergy Components".
The batteries need four to five hours to fully recharge. This process may vary according temperature and air moisture.
Preferable storage condition is 40~50% charge level at 15~25℃. If the battery level becomes less than 40% of its capacity, it is recommend to re-charge the battery. It is recommended to check the battery every three months in order to keep the battery capacity at the minimum 40%.
Battery life is influenced by the number of charging cycles and storage conditions. Store and re-charge the battery at a temperature between 15~25℃. See the manual for more details.
Minimum 500 times. See the manual for more details.
When battery gauge on the display doesn't reach100%, even if re-charging for long periods.
Yes it is possible without harmful effects.
It is a Li-ion type battery. The benefits of Li-ion batteries are: 1) Holds a charge longer in storage. 2) Minimal "memory effect" (additional repeating charging is possible). 3) Compact, yet larger capacity is possible. 4) Light weight.
1) Check Assist mode in order to make sure that the correct Assist mode is selected. 2) Check the battery level. When battery level becomes too low, the Assist feeling might be reduced according to the battery level. In that case, re-charge the battery.
Please consult your local SR SUNTOUR dealer.
Yes. Contact the nearest dealer or SR SUNTOUR EUROPE service office for more details.
Contact the nearest dealer or SR SUNTOUR EUROPE service office for more details.
Contact the nearest dealer or SR SUNTOUR EUROPE service office for more details.
3 keys for the battery lock system.
Contact the nearest dealer or the SR SUNTOUR EUROPE service office for more details.
A PDF manual is available from the SR SUNTOUR website. Clickhere to get to the download section.
Contact the nearest dealer or SR SUNTOUR EUROPE service office for more details. Ebike parts should only be replaced by a qualified dealer.
Contact the nearest dealer for more details
There are different procedures depending on which country or region you live. Please follow the local law in order to make the proper disposal for Li-ion batteries.
Air Spring Forks | After Each Ride | Every 25 Hours | Every 50 Hours | Every 100 Hours |
---|---|---|---|---|
Clean stanchion tubes and dust wipers | • | |||
Inspect stanchion tubes for wear | • | |||
Check fixing bolts and skewer for proper torque | • | |||
Clean fork with light soapy water and wipe dry | • | |||
Check air pressure and SAG | • | |||
Inspect dropout thickness | • | |||
Oil wipers with teflon lubrications | • | |||
Lower casting lubrication | • | |||
Change 80W oil in air chamber | • | |||
Service sealed cartridge | • | |||
Disassemble and rebuild | • |
Coil Spring Fork | After Each Ride | Every 25 Hours | Every 50 Hours | Every 100 Hours |
---|---|---|---|---|
Clean stanchion tubes and dust wipers | • | |||
Inspect stanchion tubes for wear | • | |||
Check fixing bolts and skewer for proper torque | • | |||
Clean fork with light soapy water and wipe dry | • | |||
Check preload adjustment and SAG | • | |||
Inspect dropout thickness | • | |||
Oil wipers with teflon lubrication | • | |||
Slider sleeve and wiper lubrication | • | |||
Disassemble and rebuild | • |
Rider weight (kg) | Suggested air pressure (psi) | |||
---|---|---|---|---|
RUX | DUROLUX/AURON/AION | AXON | EPIXON/RAIDON/XCR | |
<55 | <40 | 35 - 50 | 40 - 55 | 40 - 55 |
55 - 65 | 40 - 50 | 50 - 60 | 55 - 65 | 55 - 65 |
65 - 75 | 50 - 60 | 60 - 70 | 65 - 75 | 65 - 75 |
75 - 85 | 60 - 70 | 70 - 85 | 75 - 85 | 75 - 85 |
85 - 95 | 70 - 80 | 85 - 100 | 85 - 95 | 85 - 95 |
>100 | 85+ | 105+ | 100+ | 100+ |
Max. pressure | 100psi | 150psi | 165psi | 180psi |
Cartridge types |
Description |
3CR |
3 Compression levels with adjustable rebound damping with blow-off feature |
LORC |
Hydraulic Lockout with adjustable rebound and compression damping with blow-off feature |
RLRC |
Hydraulic Remote Lockout with adjustable rebound and compression damping with blow-off feature |
RLR |
Hydraulic Remote Lockout with adjustable rebound damping with blow-off feature |
RLR8 |
Hydraulic Remote Lockout 80%with adjustable rebound damping with blow-off feature |
LOR |
Hydraulic Lockout with adjustable rebound damping with blow-off feature |
LOR8 |
Hydraulic Lockout 80% with adjustable rebound damping with blow-off feature |
RC |
Low speed compression and low speed rebound damping adjusts with blow-off feature |
LO |
Hydraulic Lockout with fixed rebound damping with blow-off feature |
R |
Adjustable rebound damping with blow-off feature. |
| Remote lock out | Lockout | Compression adjust | Rebound adjust | Blow-off feature | PCS | ||||
High speed | Low speed | Fixed | High speed | Low speed | Fixed | |||||
R2C2-PCS | | | X | X | | X | X | | X | X |
RC2-PCS | | | X | X | | | X | | X | X |
RC-PCS | | | | X | | | X | | X | X |
RLRC-PCS | X | | | X | | | X | | X | X |
LORC-PCS | | X | | X | | | X | | X | X |
R2C2 | | | X | X | | X | X | | X | |
RC2 | | | X | X | | | X | | X | |
RC | | | | X | | | X | | X | |
RLRC | X | | | X | | | X | | X | |
LORC | | X | | X | | | X | | X | |
RLR | X | | | | X | | X | | X | |
LOR | | X | | | X | | X | | X | |
RL | X | | | | X | | | X | X | |
LO | | X | | | X | | | X | X | |
NLO | | X | | | | | | X | | |
HLO | | X | | | | | | | | |
Spring side, top, plastic | 5Nm |
Spring side, top, aluminum | 20Nm |
Spring side, lower, allen screw (fix travel) | 10Nm |
Spring side, lower, alloy nut (fix travel) | 8Nm |
Spring side, lower, (travel adjust) | 7Nm |
Damping side, top, plastic | 5Nm |
Damping side, top, aluminum | 20Nm |
Damping side, lower, without adjuster | 10Nm |
Damping side, lower, with adjuster | 7Nm |
Crown clamps | 7Nm |
Max. disc Ø | Stanchion Ø |
---|---|
203mm | 34, 35, 36, 38mm |
180mm | 28, 30, 32mm |
160mm | 25,4mm & Swing Shock |
For proper torque of the brake mount, please refer to the manuals provided by the brake manufacturer. |
BT | Boost |
T | Triple |
D | Double |
S | Singe |
OCTA | Octalink |
SQ | Square BB |
AL | Aluminum |
PB | Powder Black |
BG | Black Guard |
SG | Smoke Guard |
FG | Full Guard |
IBG | Integrated Black Guard |
SMG | Semi Guard |
DG | Double Guard |
WG | White Guard |
BDG | Black Double Guard |
WDG | White Double Guard |
QG | Black Steel Guard |
JG | Silver Steel Guard |
SR SUNTOUR, INC. (“WARRANTOR”) warrants that each SR SUNTOUR PRODUCT will be free from defects in material and workmanship for a period of TWENTY FOUR (24) months (TWELVE (12) months on damper, SIX (6) months on seals,slider sleeves & bushings) from the date of the first retail purchase of the PRODUCT. The Limited Warranty is referred to herein as “the Limited Warranty.” The PURCHASER’s sole and exclusive remedy under this Limited Warranty for defects in the PRODUCT shall be the repair or replacement, in WARRANTOR’s sole discretion, of the defective PRODUCT, or components thereof.
In order to activate limited warranty coverage, the first retail PURCHASER (hereinafter referred to as “PURCHASER”) must register the purchase of the PRODUCT on line at www.SR SUNTOUR-CYCLING/Warranty.com within seven (7) days of purchase of the PRODUCT.
This Limited Warranty does not apply to, will be deemed null and void, and WARRANTOR shall have no liability or responsibility in respect of, damages or expenses relating to:
- The failure to properly install, use, maintain, store, or transport PRODUCT as, for example, specified in any manuals or other literature supplied by WARRANTOR, on WARRANTOR’s website, or in accordance with any applicable laws, codes, regulators or standards;
- Improper specification or application of the PRODUCT as a sub component on a different product;
- Any PRODUCT purchased from any entity other than WARRANTOR, WARRANTOR’s OEM (original equipment manufacturer) customers, or WARRANTOR’s authorized dealers;
- Alteration, change or modification of the PRODUCT, including its subcomponents, parts or assemblies;
- Cosmetic issues, such as scratches, chips or colour deviations;
- Accidents, neglect, misuse, abuse, improper use, lack of reasonable or proper maintenance, improper assembly, repairs improperly performed, replacement parts or accessories not conforming to WARRANTOR’s specifications, use exceeding the recommended and permitted limits of the PRODUCT, or not following the warranty procedure set forth herein.;
- Activities such as acrobatics, stunt riding, ramp riding, racing, and/or normal wear or deterioration occasioned by the use of the PRODUCT. Items subject to normal wear or deterioration include but are not limited to oil, dust seals, oil seals, o-rings, bushings, bearings, rubber moving parts, stanchion tubes, bearings, and cartridges;
- Any components of any other assembly on which a PRODUCT may be installed, and which may be damaged as a result of the failure of a PRODUCT;
- Any expenses related to the transportation of the PRODUCT to or from an authorized service center, labor costs to remove the PRODUCT from the bicycle, or compensation for loss of use while the PRODUCT is being repaired;
- Any defect or non-conformity that has not been timely and promptly communicated in writing to WARRANTOR or WARRANTOR’s authorized representative as set forth herein;
- Any damage, cost or expense caused by Act of God; or
- Loss of time, loss of use, inconvenience, loss of profits, lost business, lost business opportunities, damage to reputation, goodwill and any incidental or consequential damages arising out of or relating to the PRODUCT, or other matters not specifically covered hereunder.
This warranty will be automatically and immediately null and void if the serial number of the PRODUCT is altered, erased, defaced or otherwise subject to any tampering. In addition, any use of the PRODUCT with a rental or leased bicycle or for any other commercial use (i.e. on a messenger bike) shall render the Limited Warranty immediately null and void.
In the event of an alleged defect covered by this warranty, PURCHASER shall, within ten (10) calendar days of learning of the alleged defect, contact the authorized retailer from which PURCHASER purchased the PRODUCT to give specific and detailed notice of any non-conformities or defects regarding the PRODUCT. This notice shall include photographs of the PRODUCT and including photographs of the alleged defect, a copy of the proof of purchase, and the serial number of the PRODUCT. In addition, the maintenance history of the PRODUCT must be submitted with the warranty claim. Within thirty (30) days thereafter, the PURCHASER will be advised of whether the limited warranty claim is accepted or rejected. If accepted, the PURCHASER will be advised of the remedy to be provided pursuant to the terms and conditions of this Limited Warranty.
In the event WARRANTOR, in its sole discretion, decides to replace the PRODUCT, but the same PRODUCT is no longer available, WARRANTOR may replace the PRODUCT with a different product of equal or higher value to the PRODUCT.
The PURCHASER forfeits any rights it may have under this Limited Warranty if the PURCHASER does not follow the procedure described herein.
Except as expressly provided by this Limited Warranty, Warrantor SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES ASSOCIATED WITH THE USE OR NON-USE OF THE PRODUCT OR A CLAIM UNDER THIS LIMITED WARRANTY, WHETHER THE CLAIM IS BASED ON CONTRACT, TORT OR OTHERWISE. The foregoing statements of warranty are exclusive and in lieu of all other remedies or damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND ALL IMPLIED WARRANTIES ARISING FROM A COURSE OF DEALING, USAGE OF TRADE, BY STATUTE OR OTHERWISE, IS HEREBY STRICTLY LIMITED TO THE TERM OF THIS WRITTEN WARRANTY.
This Limited Warranty shall be the sole and exclusive remedy available to the PURCHASER with respect to this PRODUCT. In the event of any alleged breach of any warranty or any legal action brought by the PURCHASER based on breach of warranty, alleged negligence or other tortious conduct by WARRANTOR, the PURCHASER’S sole and exclusive remedy will be repair or replacement of defective materials or refund of the purchase price, as stated herein. In no event shall the liability of the WARRANTOR exceed the purchase price of the PRODUCT.
This warranty is made by WARRANTOR with only first PURCHASER of the PRODUCT and does not extend to any subsequent PURCHASER or any third parties. The unexpired portion of this Limited Warranty may not be transferred to any entity.
Any and all claims or disputes of whatever nature arising out of or otherwise relating to this Limited Warranty shall be governed by and construed in accordance with the laws of the State of New York only, and the parties expressly acknowledge and irrevocably agree that the sole and exclusive venue for and jurisdiction over any such claim or dispute shall be the state or Federal courts siting in White Plains, New York to the exclusion of the jurisdiction of the courts of any other place, without giving effect to choice of law principles and without giving effect to the United Nations Convention regarding contracts for the International Sale of Goods (which the parties expressly exclude).
Your acceptance of delivery of The PRODUCT constitutes your acceptance of the terms of this Limited Warranty. This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If any term or provision of this Limited Warranty is invalid or unenforceable under any local, state, or federal law, statute, judicial decision, regulation, ordinance, executive order or other rule of law, such term shall be deemed reformed or deleted, but only to the extent necessary to comply with such statute, regulation, ordinance, order or rule and the remaining provisions of this Limited Warranty shall remain in full force and effect.
This document alone contains the entire Limited Warranty given by WARRANTOR in respect of the PRODUCT. Nothing in WARRANTOR’s product literature, marketing materials, advertisements and technical specifications expand or enlarge the scope of this Limited Warranty. There are no terms, promises, conditions or warranties regarding the PRODUCT other than those expressly contained herein. WARRANTOR specifically does not authorize any person, including but not limited to any dealer or other agent or employee of WARRANTOR, to extend the time, scope, terms or conditions of this Limited Warranty or to create or assume for Warrantor any other obligation or liability with respect to the Product or other products designed, manufactured or sold by Warrantor. All terms of this Limited Warranty are contractual and not mere recitals, and constitute material terms of this Limited Warranty. It is agreed and acknowledged that the provisions of this Limited Warranty allocate the risks between WARRANTOR and PURCHASER, that WARRANTOR’s pricing reflects this allocation of risk, and but for this allocation and limitation of liability, WARRANTOR would not have entered into this Limited Warranty.
