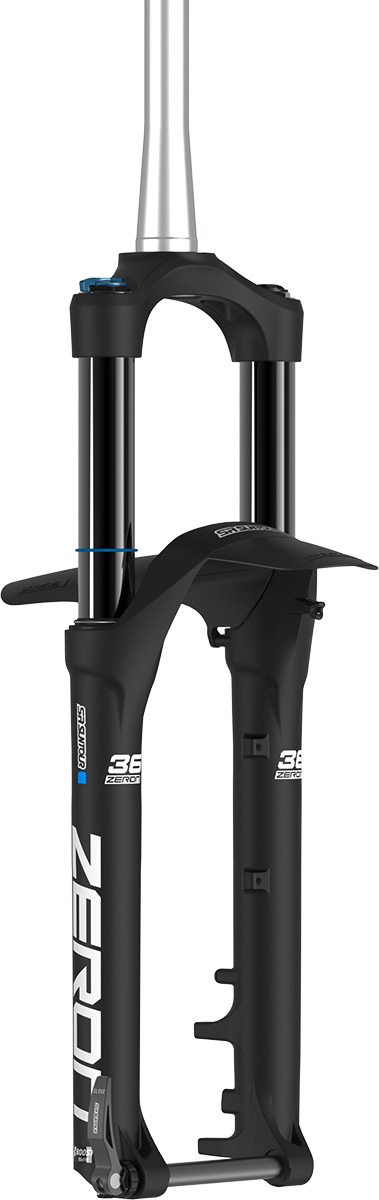

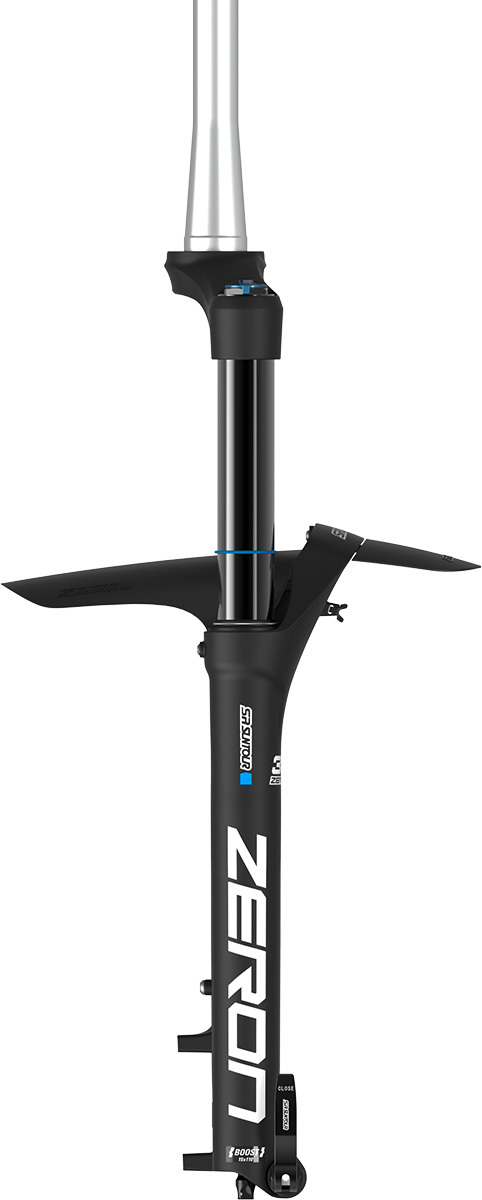

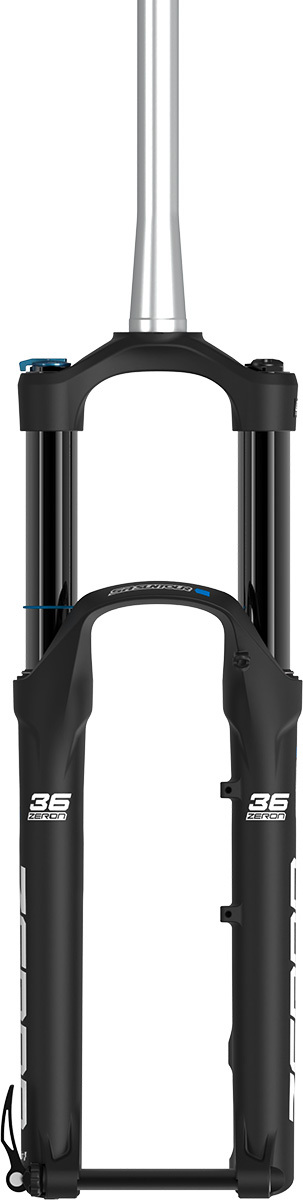

ZERON36 Boost EQ

120mm, 130mm, 140mm, 150mm, 160mm

Boost

• specs
  Offset

  44mm available

  Production date

  2023

  Steerer tube diameter

  1.5"to1-1/8"

  Travel

  120mm, 130mm, 140mm, 150mm, 160mm

  Right Side

  3CR, 2CR, RC

  Left Side

  Air spring

  Crown

  A6000 series, Forged

  Pitch

  145mm

  Lower

  Magnesium

  Brake

  Postmount 180mm Direct

  Steerer tube

  1.5"to1-1/8" tapered (CTS) Alloy

  Stanchion tube finish

  A6000, Hard anodized Black

  Axle

  ø15-110 15LH-110

  Short fender

  included in delivery

  Intended Use

  Enduro, Trail

  Axle to Crown

  580(160 travel) 570(150 travel) 560(140 travel) 550(130 travel) 560(120 travel)

  ABS

  optional
• technologies
  •

    EQ EQUALIZER™ SYSTEM

    The Air EQ system, perfectly equalizing the rider's weight to the spring curve resulting in exact positioning and support. The Air EQ system creates a customized feel for each rider, optimizing proper sag and volume control in conjunction with the external damping adjustments of our sealed PCS cartridges. The result is a supple coil-spring feel in a lightweight, progressive and easy to adjust air-spring package.

    Learn more

• service
  • Exploded Views
  • General Fork Manuals
  • SRSuntour_general_fork_glossary.pdf

  ---

  Tech Videos
• models
  ZERON36-BOOST EQ ABS 3CR DS 15LH-110 29"
  ZERON36-BOOST EQ 3CR DS 15LH-110 29"
  ZERON36-BOOST EQ ABS 2CR DS 15LH-110 29"
  ZERON36-BOOST EQ 2CR DS 15LH-110 29"
  ZERON36-BOOST EQ ABS RC DS 15LH-110 29"
  ZERON36-BOOST EQ RC DS 15LH-110 29"
